Valentini Uses Italian Made Gearboxes With The Largest Sumps For Cooler Operation & Longer Life!
-
Side Gear Drive System Is In An Oil Bath Gear Box.
-
Round & Slotted Top Link Holes.
-
Dual Rotor Scraper Blades On End Flanges Prevent Vegetation From Wrapping To Protect Rotor Seals.
-
Unique & Patented Labyrinth Seals Design Ensures Bearings Are Protected From Dirt!
-
Tool Free Rear Gate Spring Tension Adjustment is Quick & Easy!
-
Hydraulically Adjusted XW (Extra Wide) Packer Roller Provides Excellent Means of 'On-The-Fly' Depth Control (Superior to Skid Shoes) & Also Provides Soil Conditioning!
-
Skid Shoes Also Included As Shown.
-
Roller Includes Mud Scrapers As Shown.
-
Rotor 'Counter Flange Kit' Minimizes Blade & Bolt Breakage in The Toughest & Rockiest Ground!
-
Multi-Position, Adjustable Rear Gates with Built-In Shock Absorption:
-
Rear Gates Are Mechanically Linked To Rear Roller & Automatically Follows Roller Height Adjustment!
-
Front Safety Guards For Personnel & Equipment Protection.
-
Cam Clutch Protected PTO Shaft:
-
It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available!
-
No Maintenance, Automatic Clearing, & Resetting, After Locked Rotor Conditions.
-
Optional Items:
-
Front Pair Of Side Discs.
-
Front Pair Of Corner Plowshares.
-
Front Pair Of Tire Track Eradicators.
-
Sample Video Shows a Red Model IR2500 Burier with Mesh Roller on a Tractor For Reference Only:
-

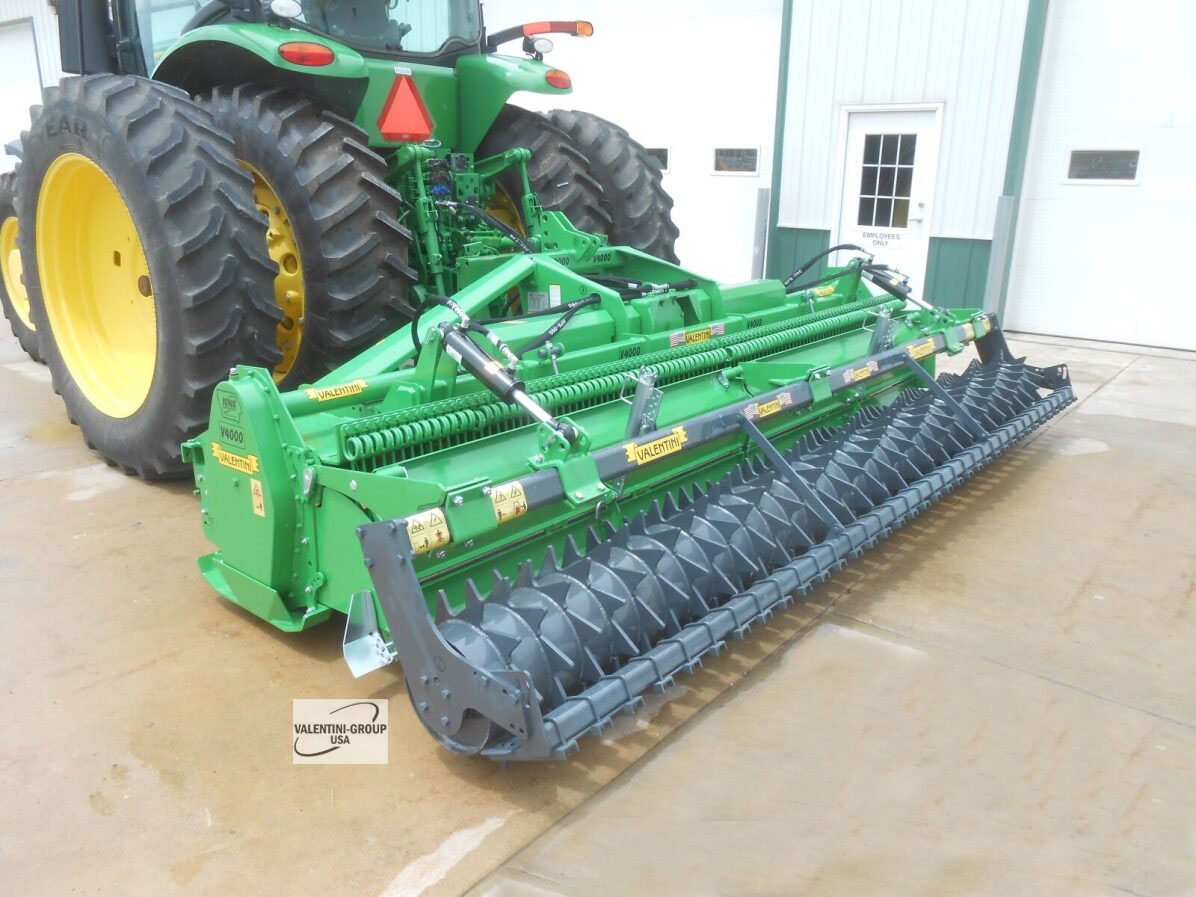

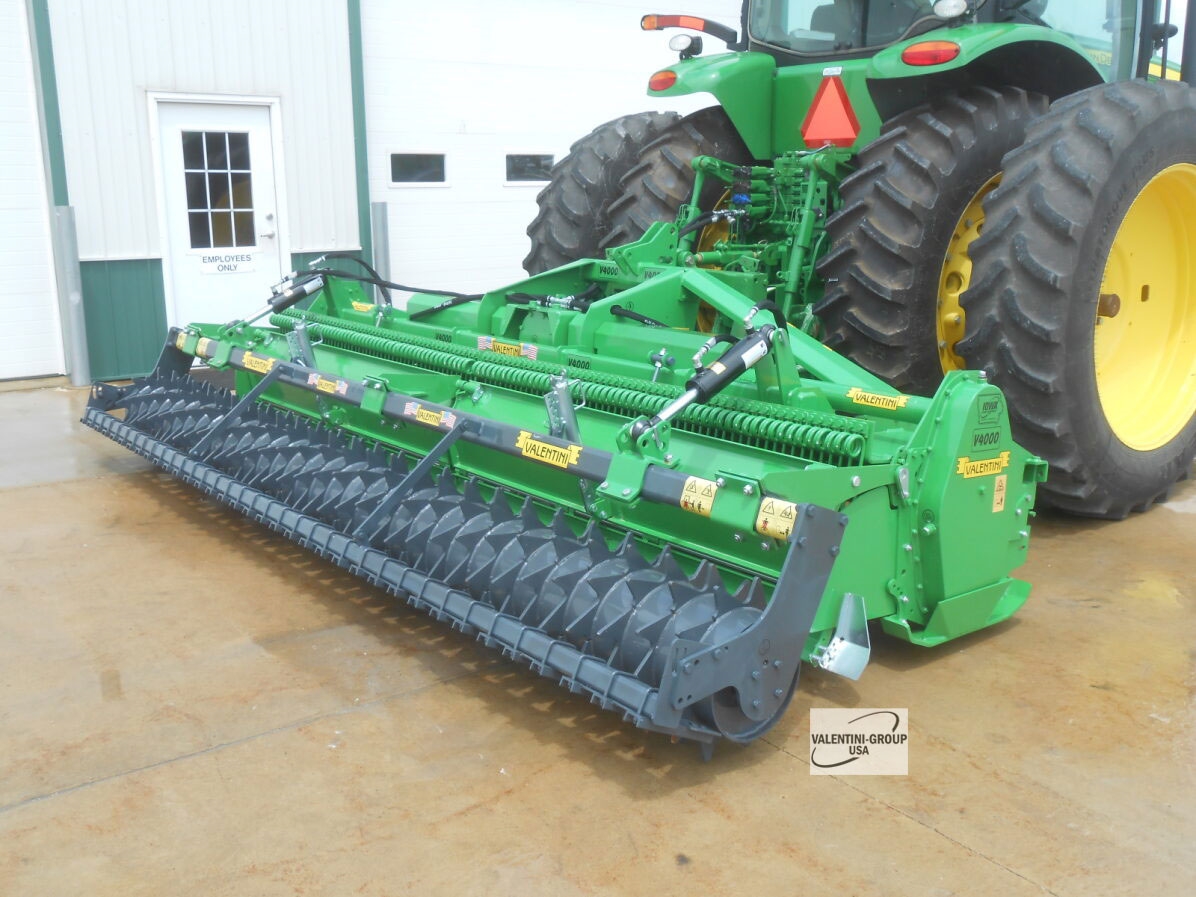

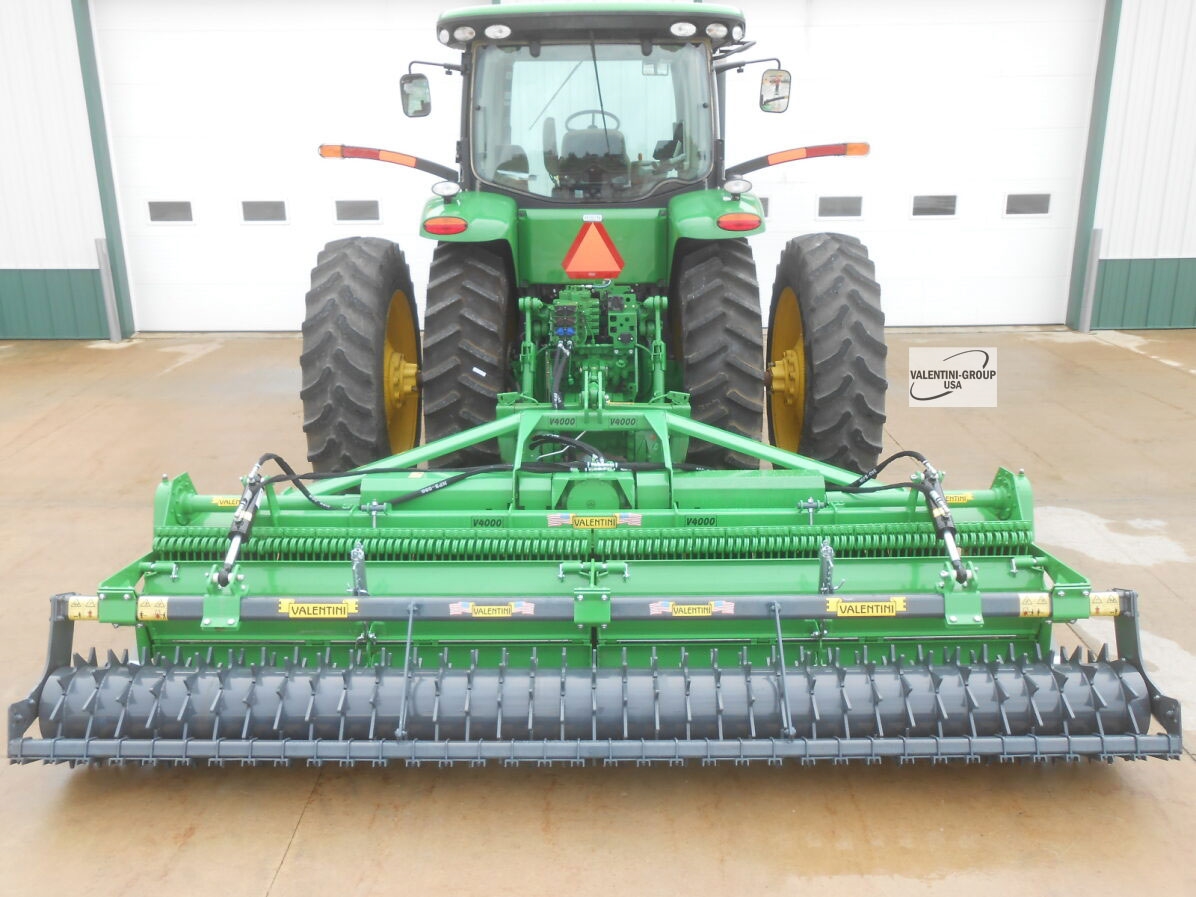

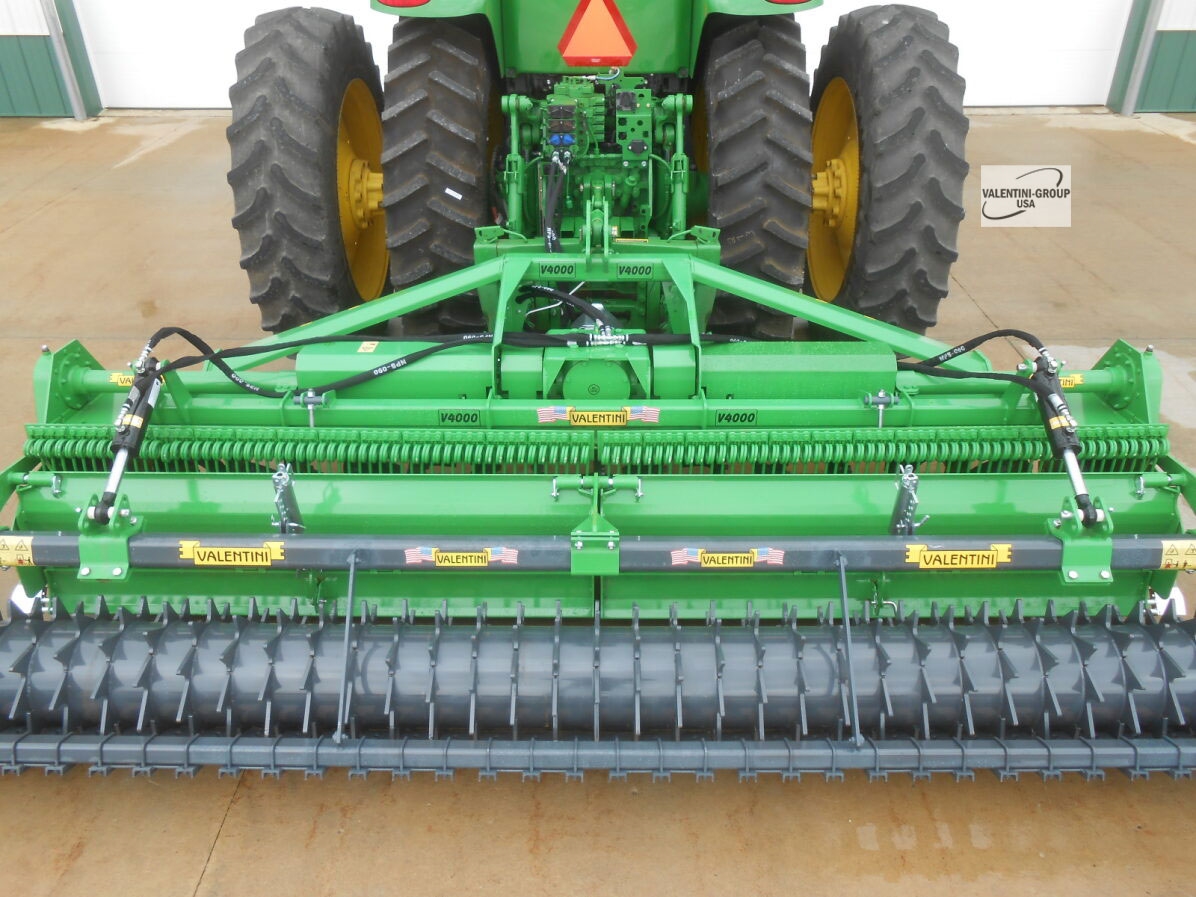

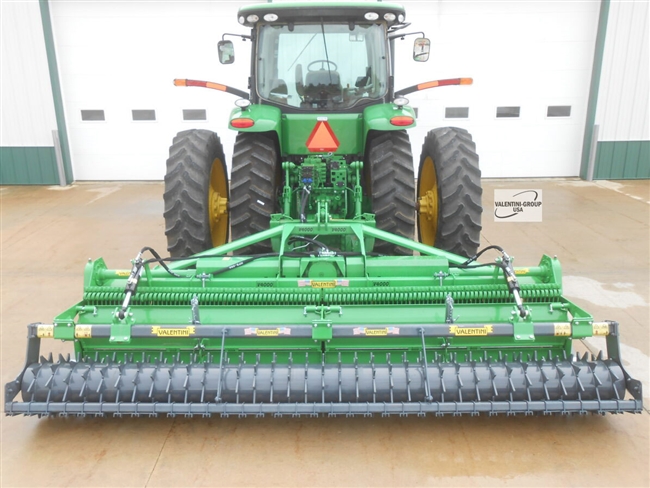

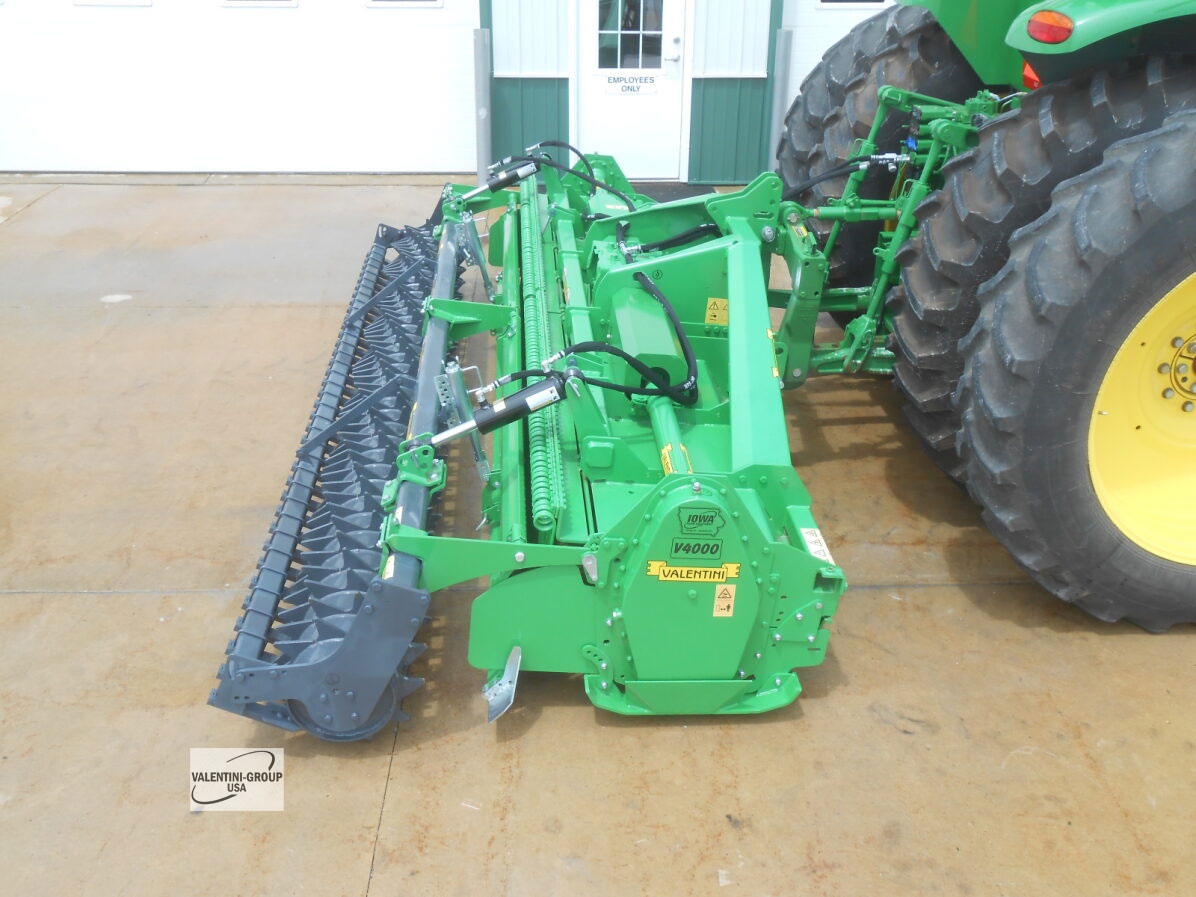

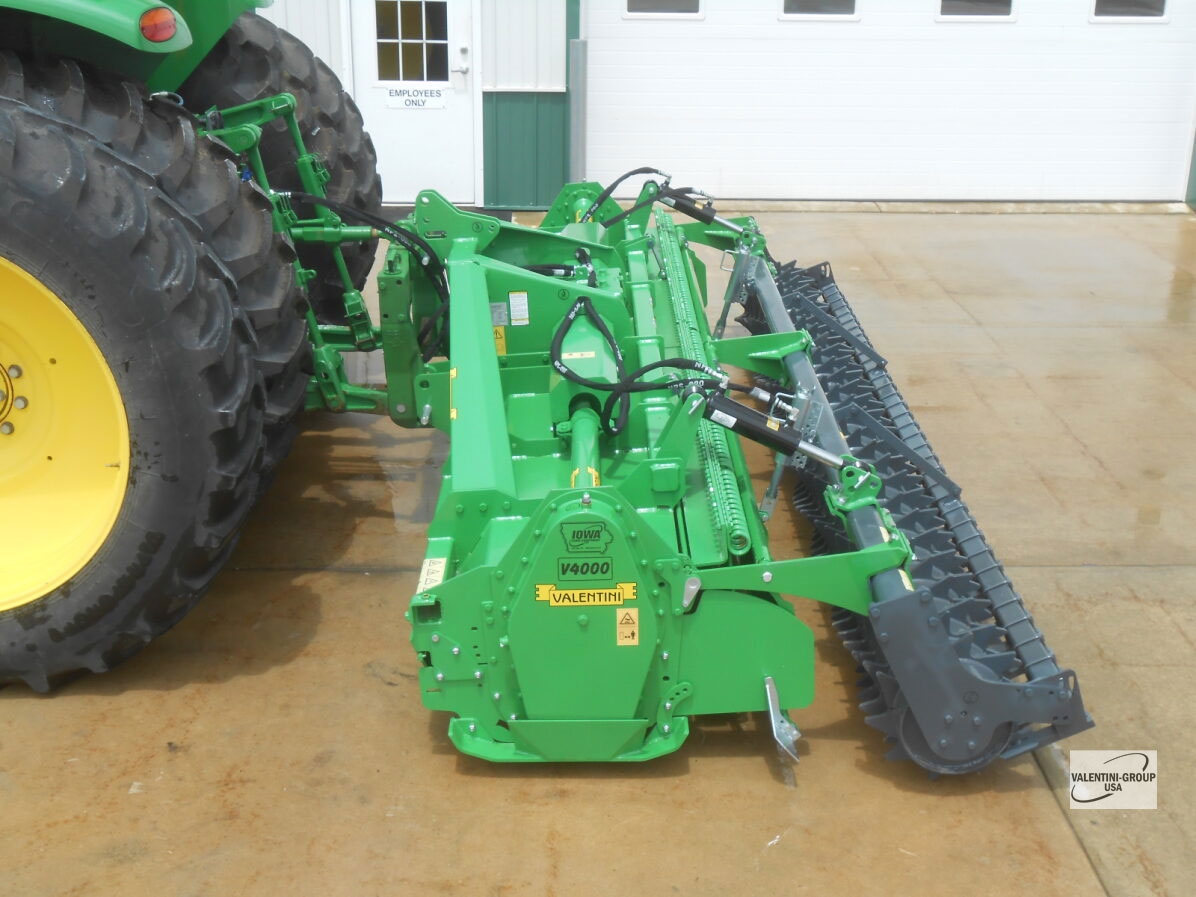

Sample Photos Show the VE4000DT, But This Listing is for the VE3000DT as Noted.
-
Tractor is Not Included.
-
Burier Includes a 1000RPM Cam Clutch Protected PTO Shaft.
BURIER PERFORMANCE:
-
AGRICULTURAL APPLICATIONS:
-

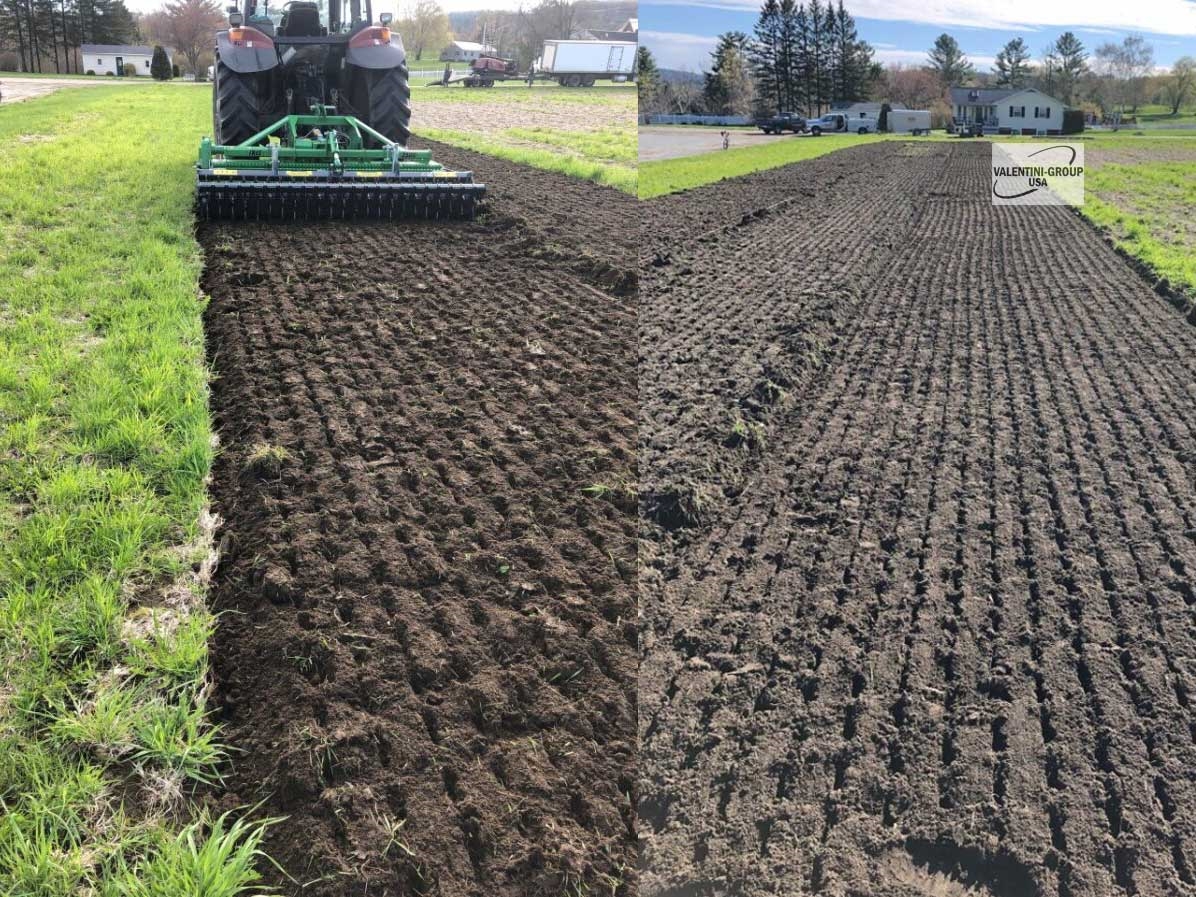

Excellent 'Single-Pass' Seed Bed Preparation (For Pasture Renovation, Produce, Row Crops, Food Plots, etc.) While Simultaneously Inverting & Burying Any Surface Debris:
-
Whether Broadcasting, Drilling Or Planting, Get Beautiful Seed Beds In An 'Easy & Efficient Single Pass'!
-
PTO Powered 'Plow Substitute':
-
Use This PTO Powered Burier Instead Of A Plow & You Have Instant Inversion & Burying Of Vegetation While Simultaneously Producing A Beautiful Seed Bed...In 'One Efficient Pass'!
-
No More Plowing, Then Discing, Discing, Discing, Then Soil Finishing...& Even After All That, Still Not Being Satisfied With The Results - This Burier Provides 'Single-Pass Efficiency' With Superior Results!!!
-
AMENDMENT & FERTILIZER INCORPORATION & BLENDING:
-
Incorporate & Blend Chicken Litter, Steer Manure, Cover Crops & Other Green Manure For Fall Tillage & Amendment, Or Develop A Beautiful Seedbed (Simultaneously) For Immediate Use, All In 'One Efficient Pass'!
-
For Cover Crops: Our Buriers 'Terminate, Incorporate & Bury' In 'One Efficient Pass'!
-
Incorporate Produce Residue On Level Or Elevated Beds For Post-Harvest Clean Up & Preparation. Bed Shapers Are Also Available For Even Greater 'Single-Pass Efficiencies'!
-
For Poorer Soils: Deeply Incorporate & Blend Sand Or Compost Into Heavier/Clay Type Soils, Deeply Incorporate & Blend Compost Into Sandy & Silty River Bottom Type Soils, Shallower Incorporation & Blending Of Green Waste, Saw Dust, Wood Chips, Mulch & Other Beneficial Vegetation In 'One Efficient Pass'!
-
SOD FARM APPLICATIONS:
-
Invert & Bury Unharvested Sod & Develop 'Beautiful Seed Beds' For Broadcasting, Drilling or Hydroseeding In 'One Easy & Efficient Pass'! Of Course, 'Beautiful Single-Pass Seedbeds' Are Achievable w/o Inverting Unharvested Sod Too!
-
POST CONSTRUCTION CLEAN-UP:
-
'Single-Pass' Inversion & Burying Of Stones & Rocks, Limbs, Branches & Other Surface Debris, While Simultaneously Developing A Beautiful Seedbed, Suitable For Broadcasting, Drilling Or Hydro Seeding!
-
Common For Pipeline & Other Underground Post Construction Restoration Work.
-
Rock & Stone Burying: Max +/-6" Diameter, Subject To Concentration.
-
General Construction Site Cleanup & Simultaneous 'Single-Pass' Finish Grading & Seedbed Development.
-
Stone & Rubble 'Sifting & Clearing Substitute', Achieving Well Groomed, Leveled & Beautifully Conditioned Soil Surfaces.
-
GRAVEL DRIVEWAYS & ROADS, AND GRAVEL ROAD BASE APPLICATIONS:
-
Rejuvenate, Grade, Dress, Level & Pack Gravel On New & Existing Driveways, Municipal Gravel Roadways, Gravel Construction Roads & Accessways, etc.:
-
Eliminate Ruts & Peaks While Developing A Nice Level Groomed Surface, Or Road Base, w/o Bringing In More (expensive) Quarry Gravel!
-
LAND RECLAMATION, IMPROVEMENT & DEVELOPMENT:
-
Invert & Cover Stone, Tall & Thick Stands of Vegetation & Other Debris, Achieving 'Single-Pass' Finish Graded Surface Quality Prior To Construction Surveying, Or Municipally Required Maintenance.
-
EQUESTRIAN ARENAS & PADDOCKS:
-
Moderate & Condition Tough, Hard Poor Soils, Add Amendments, Invert Rocks, Or For Regular Maintenance.
-
DIRT RACING TRACKS: Horse Tracks, Moto-Cross Tracks, Sprint Car Tracks, Demo Derby Tracks, Flat Tracks, Etc!
-
Moderate, Condition, Rejuvenate & Develop Beautifully Dressed Dirt Track Conditions. If Inverting The Dirt Track Is NOT The Objective, Then Our Other PTO Powered Dirt Conditioner To Consider Is Our Valentini 'Power Harrows' - Particularly Popular On Moto-Cross & Other Dirt Tracks With Clean, Moderate Soil That Only Needs To Be Dressed & Conditioned; Sometimes Shallow, Sometimes Deeply!
-
Clevis Style, Category 2, 3-Point is Quick Hitch Compatible!
-
1000RPM Gearbox Rated for 120 to 220HP, PTO.
-
Working Width: 10'-2".
-
Overall Width: 11'-6".
-
Working Depth: 11"!
-
Toughest Ground may require Plow Shares or 2-Passes for Max Depth.
-
Rock & Debris Burying Capacity: Max 6" Dia, Subject To Concentration.
-

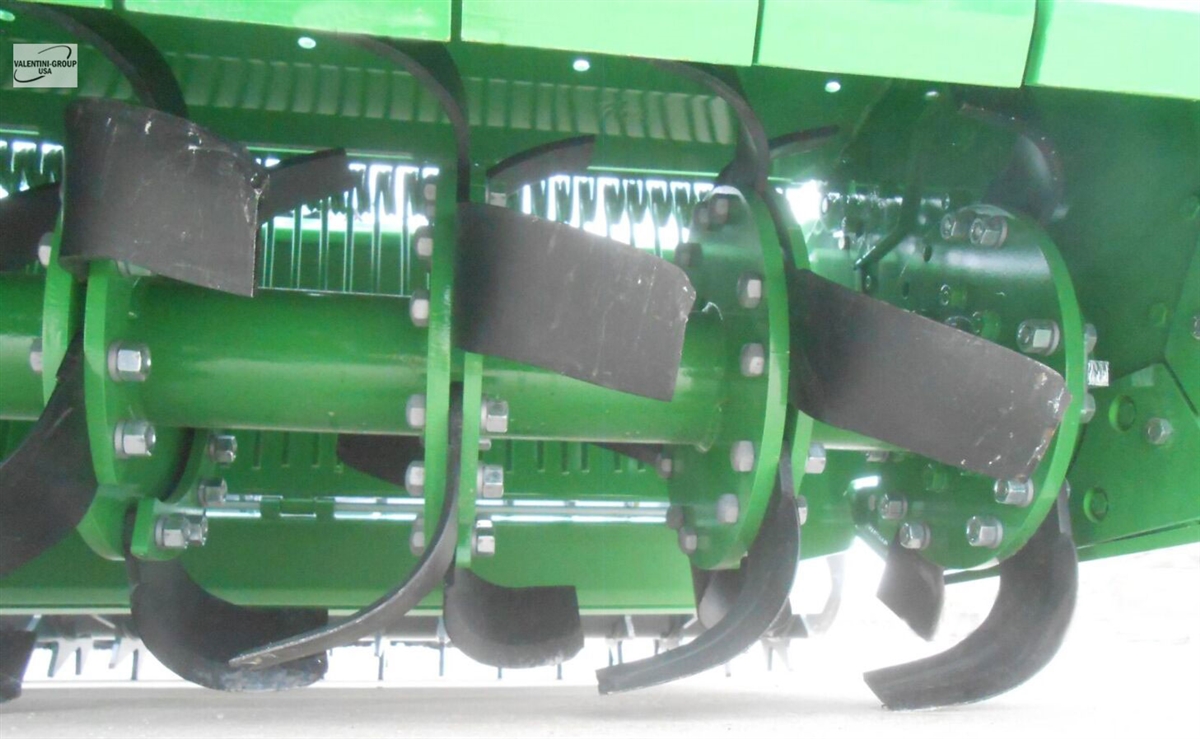

Rotor Has 8 Flanges for a Total of 72 Blades:
-
6 Blades Per Flange on 7 Center Flanges with Counter Flange Kit.
-
3 Blades Per Flange on 2 Outside Flanges.
-
Each Outside Flange Has 1-Straight Cutter Blade & 1-Inside Cutter Blade in Addition to 3-Standard Blades.
-
Burier & Roller Weight: 4,781lb's (less PTO Shaft, Pallet/Crating, etc.).
-
Specifications are based on manufacturer provided data & subject to change.
|
|
