Home > STONE CRUSHERS > 'RA' Series
3'-6" to 7'-8" Working Widths
(100-230HP) >

RA2000DT Rock & Stone Crusher:
82" Working Width, 10" Depth
Suitable for 150-230HP

Valentini RA2000DT 3-Pt Rock & Stone Crusher

Alternative Views:

Availability:: Availability Varies From Season To Season
Product Code: RAMBO2000DT

GENERAL FEATURES:

SPECIFICATIONS:

Crusher's 'Diminishing Chamber' is Comprised of the Following:

Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.

Containment Door Constructed for Extreme Service Duty & Wear Resistance.

Crusher Body Internal Hardox Lining is Replaceable.

Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.

Keep Front Gate Closed for Max Deflector Use, or Open For Max Working Depth.

Extreme Service Duty Rotor is Shock & Wear Resistant.
25" Rotor Working Diameter, Tip to Tip.
1" Diameter Tooth Shanks & Holders.

Tooth 'Holders' are Welded to the Rotor.
Teeth are Fixed in Holders with Snap Rings for Easy Service!

Central & Side Gear Drives in Oil Bath Gearboxes.

Dual Transmission Units Have Oil Bath Gearboxes on Both Sides.

Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
Hydraulically Adjusted Rear Skid Shoes.
Safety Covers & Guards.
Crusher Includes Cam Clutch Protected Main PTO Shaft.

It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available.

No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!

Dual Transmission Models Have Slip Clutch Protected Side Drive Shafts.

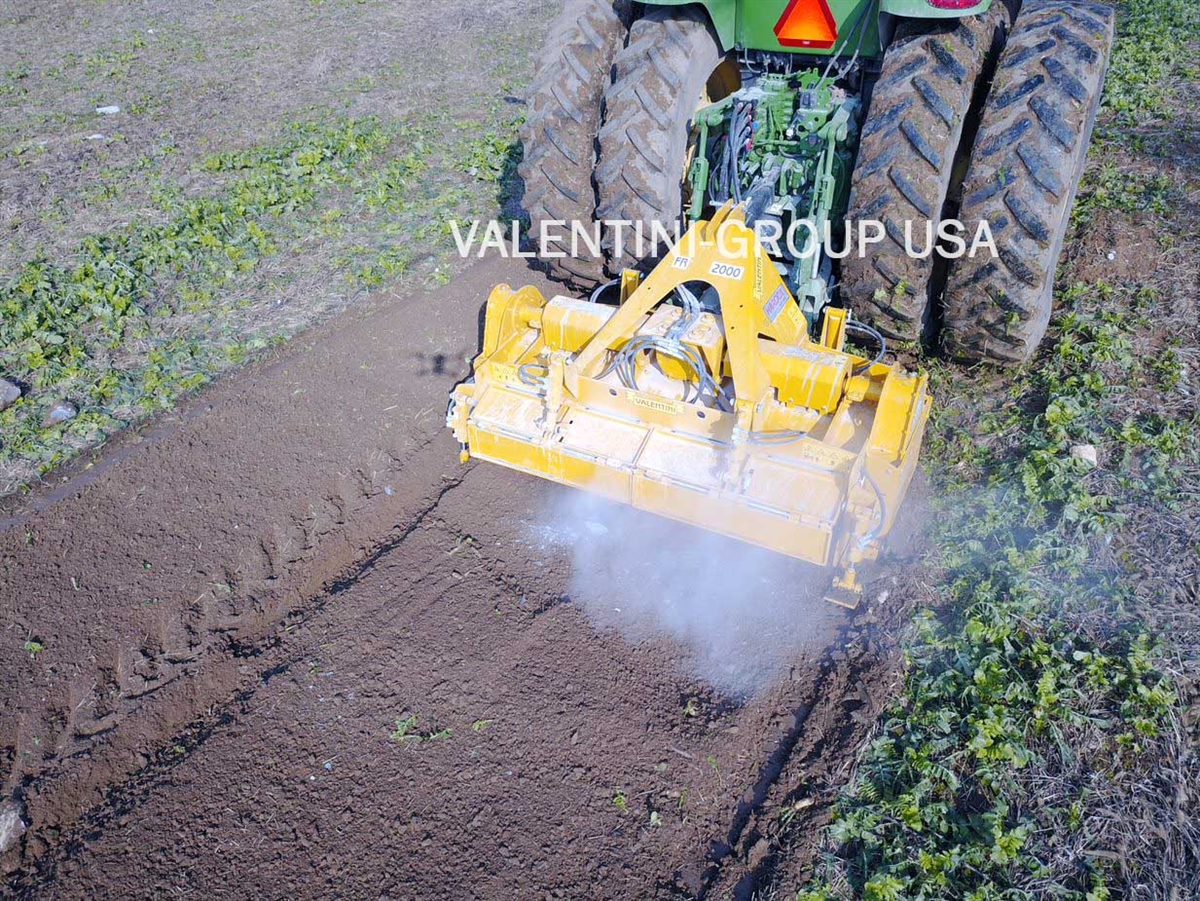

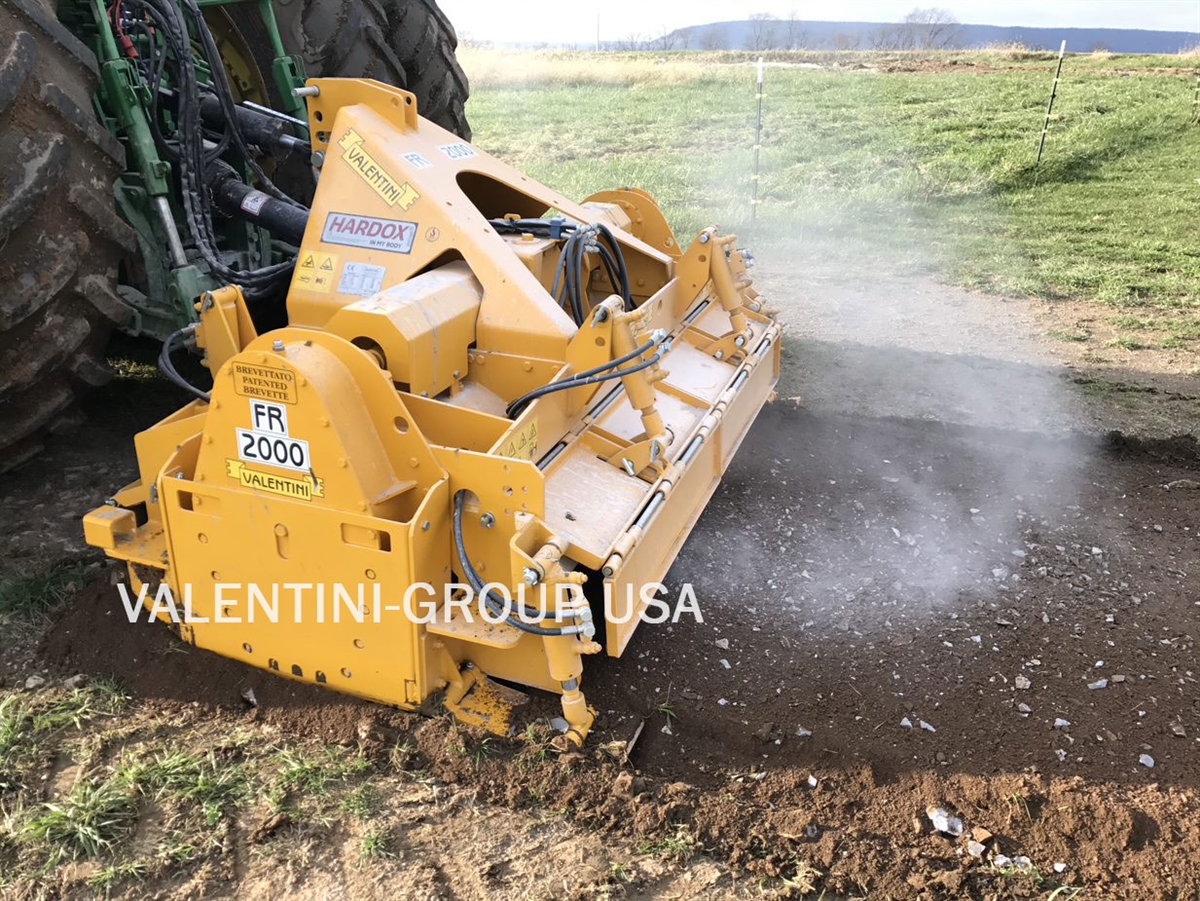

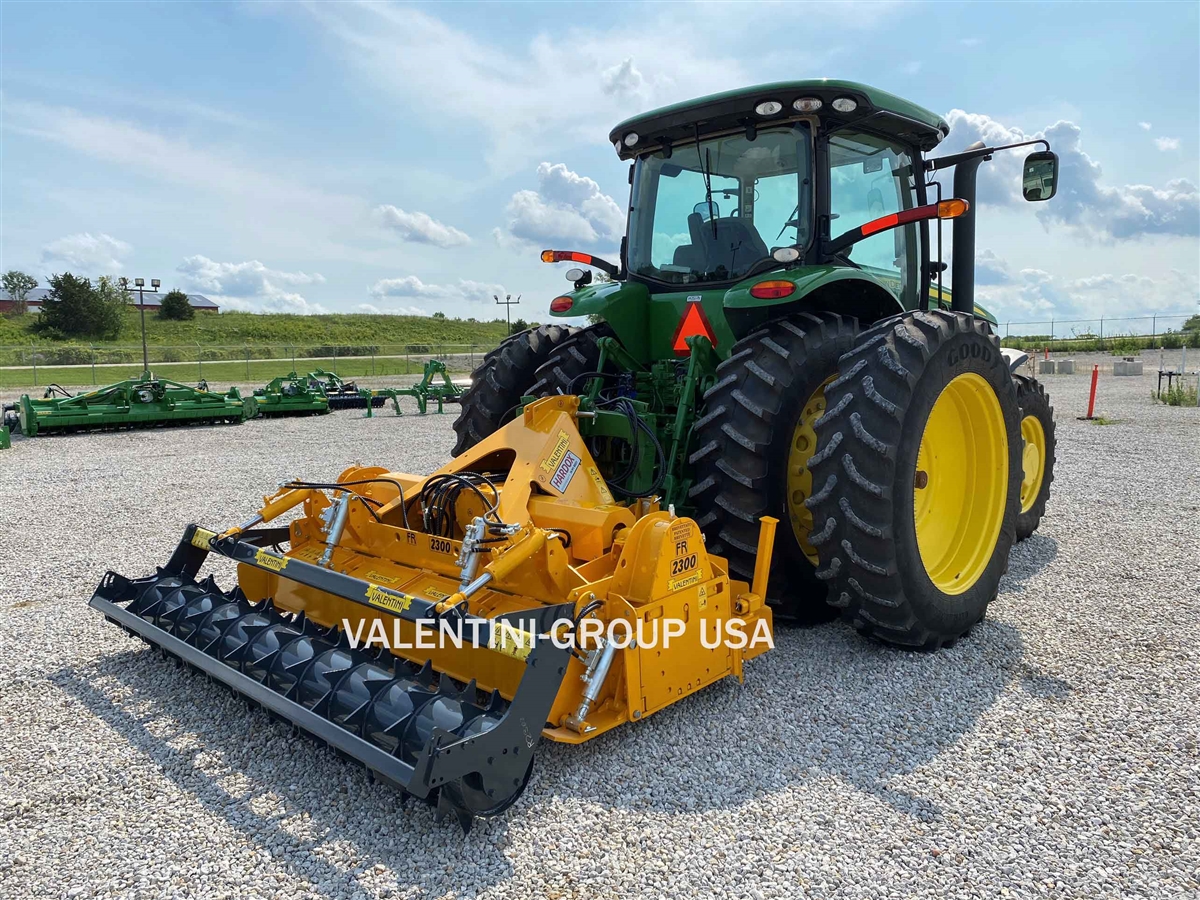

Some Sample Images Show Tractor For Reference Only - Tractor is Not Included.

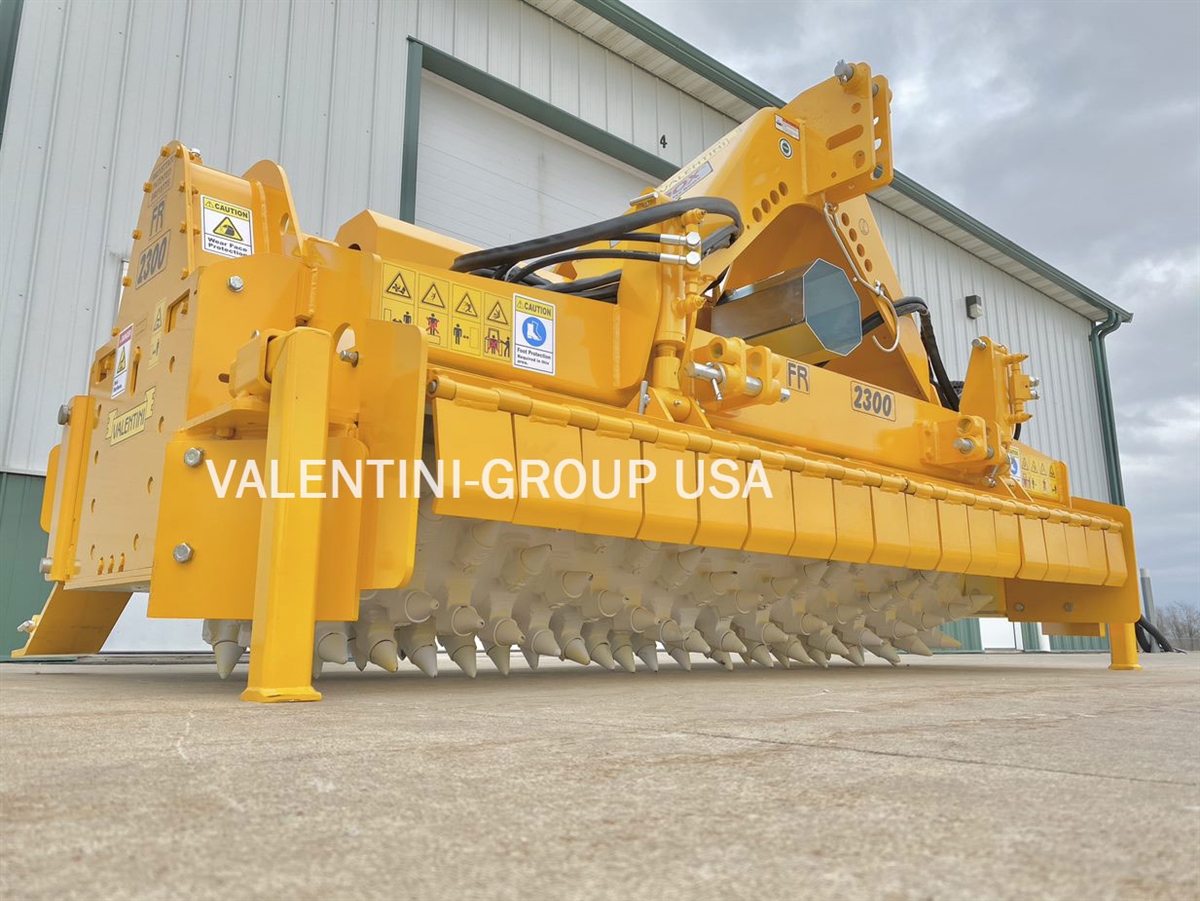

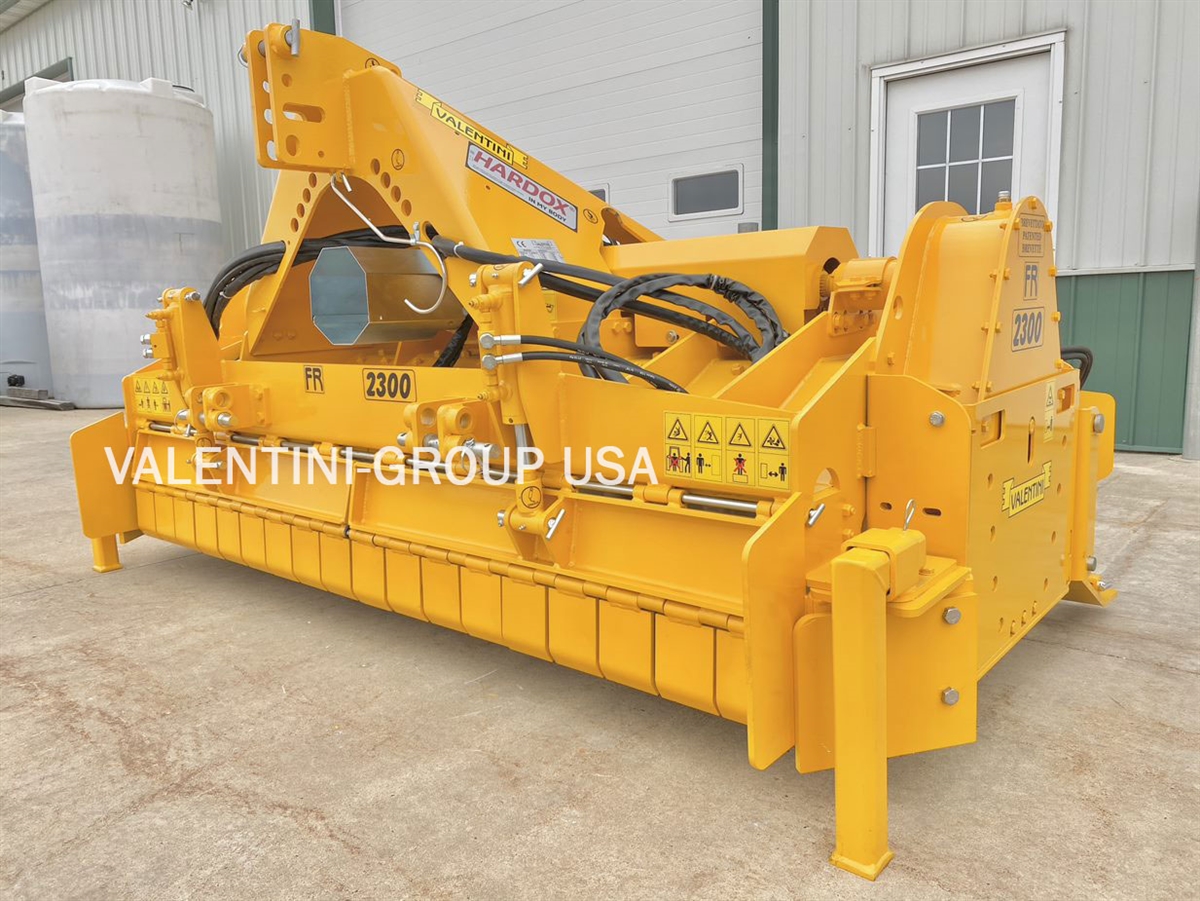

Sample Photos Include The RA2300DT For Reference Only; This Listing is For a RA2000DT.
