Home > STONE CRUSHERS > 'RA' Series
3'-6" to 7'-8" Working Widths
(100-230HP) >

RA1800DT Rock & Stone Crusher:
72" Working Width, 10" Depth
Suitable for 140-230HP

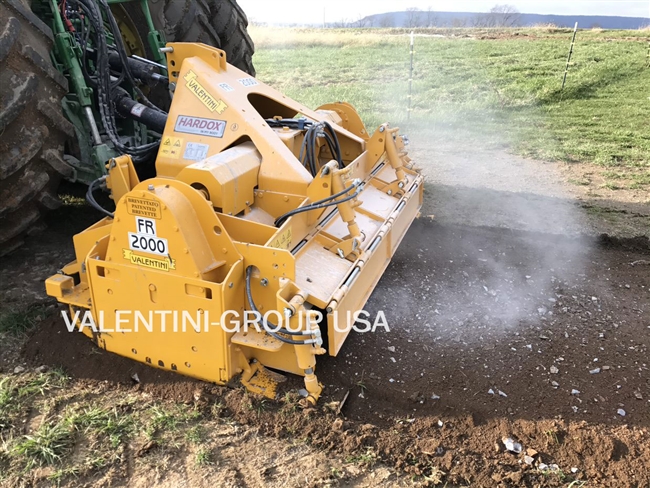

Valentini RA1800DT PTO Rock Crusher

Alternative Views:


Availability:: Availability Varies From Season To Season
Product Code: RAMBO1800DT


GENERAL FEATURES: SPECIFICATIONS:


  • Crushers 'Diminishing Chamber' is Comprised of the Following:
    • Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
    • Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
    • Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
      • Containment Door Constructed for Extreme Service Duty & Wear Resistance.
    • Crusher Body Internal Hardox Lining is Replaceable.
  • Hydraulically Controlled Front Opening Gate & Deflectors for Infinite Adjustment.
    • Keep Front Gate Closed for Max Deflector Use, or Open For Max Working Depth.
  • Extreme Service Duty Rotor is Shock & Wear Resistant.
  • 25" Rotor Working Diameter, Tip to Tip.
  • 1" Diameter Tooth Shanks & Holders.
    • Tooth 'Holders' are Welded to the Rotor.
    • Teeth are Fixed in Holders with Snap Rings for Easy Service!
  • Central & Side Gear Drives in Oil Bath Gearboxes.
    • Dual Transmission Units Have Oil Bath Gearboxes on Both Sides.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Hydraulically Adjusted Rear Skid Shoes.
  • Safety Covers & Guards.
  • Crusher Includes Cam Clutch Protected Main PTO Shaft.
    • It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available:
      • No Maintenance, With Automatic Clearing & Resetting After Locked Rotor Conditions!
    • Dual Transmission Models Have Slip Clutch Protected Side Drive Shafts.
  • Some Sample Images Show Tractor For Reference Only - Tractor is Not Included.

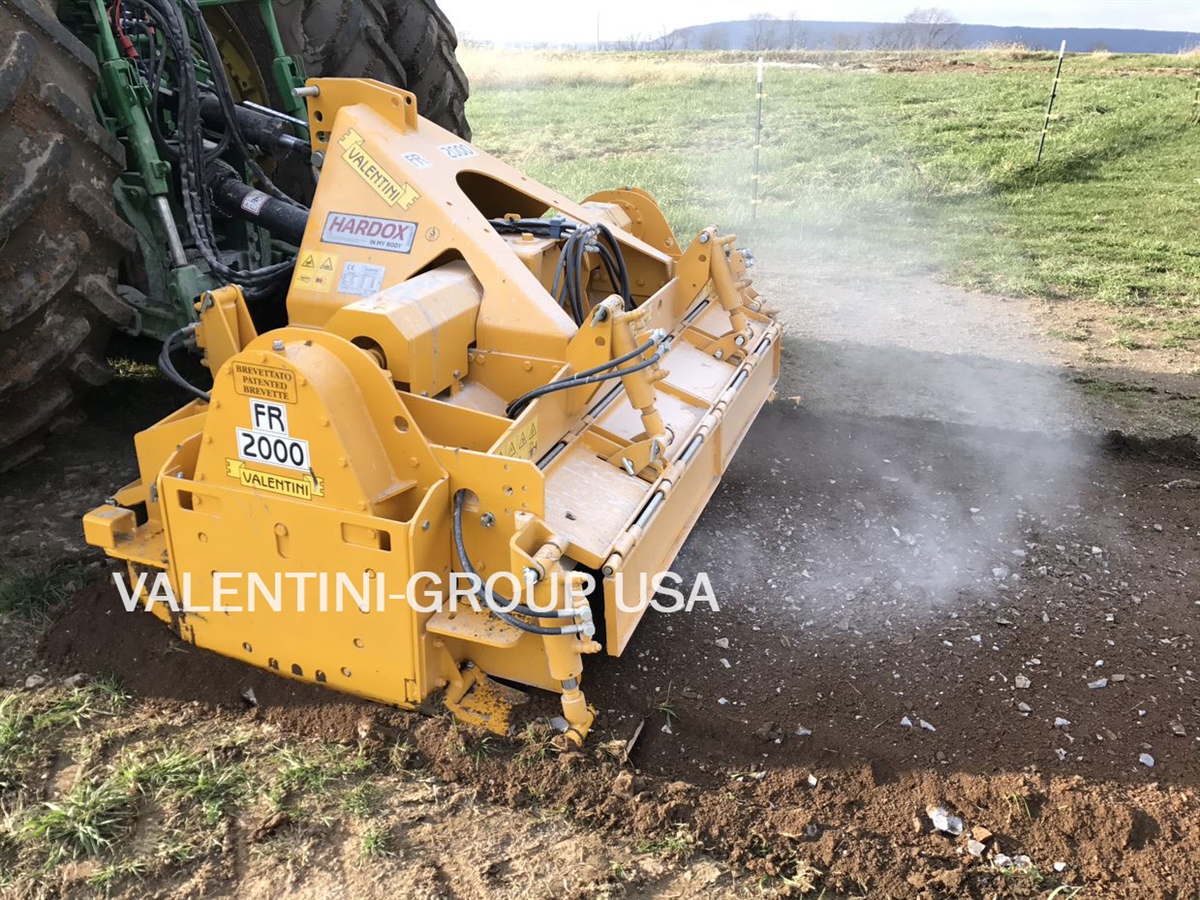

    • Sample Video is of an RA2000DT For Reference Only.

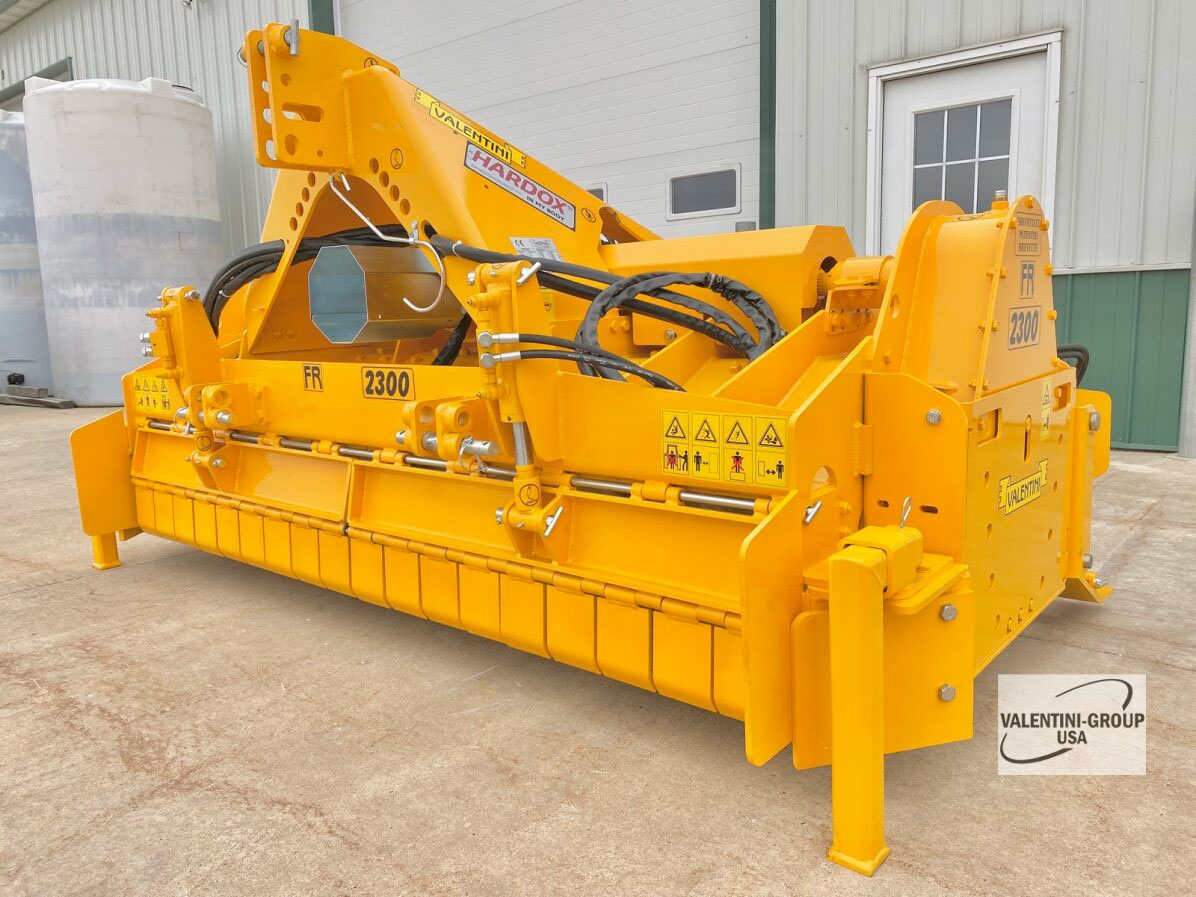

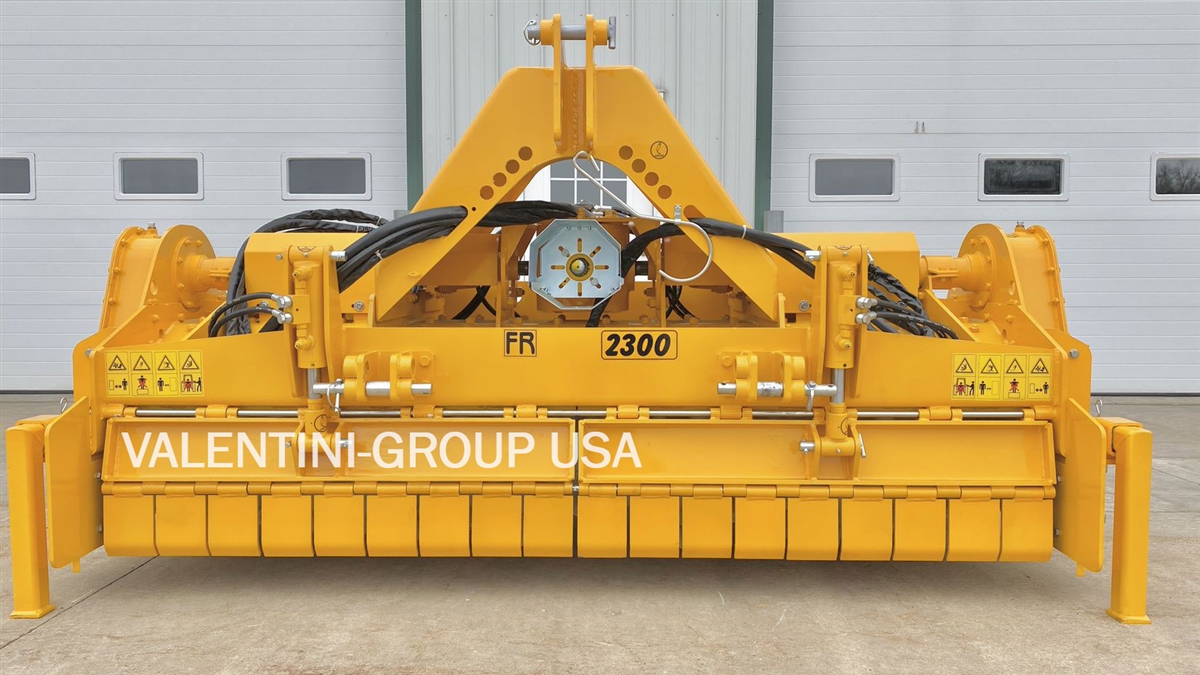

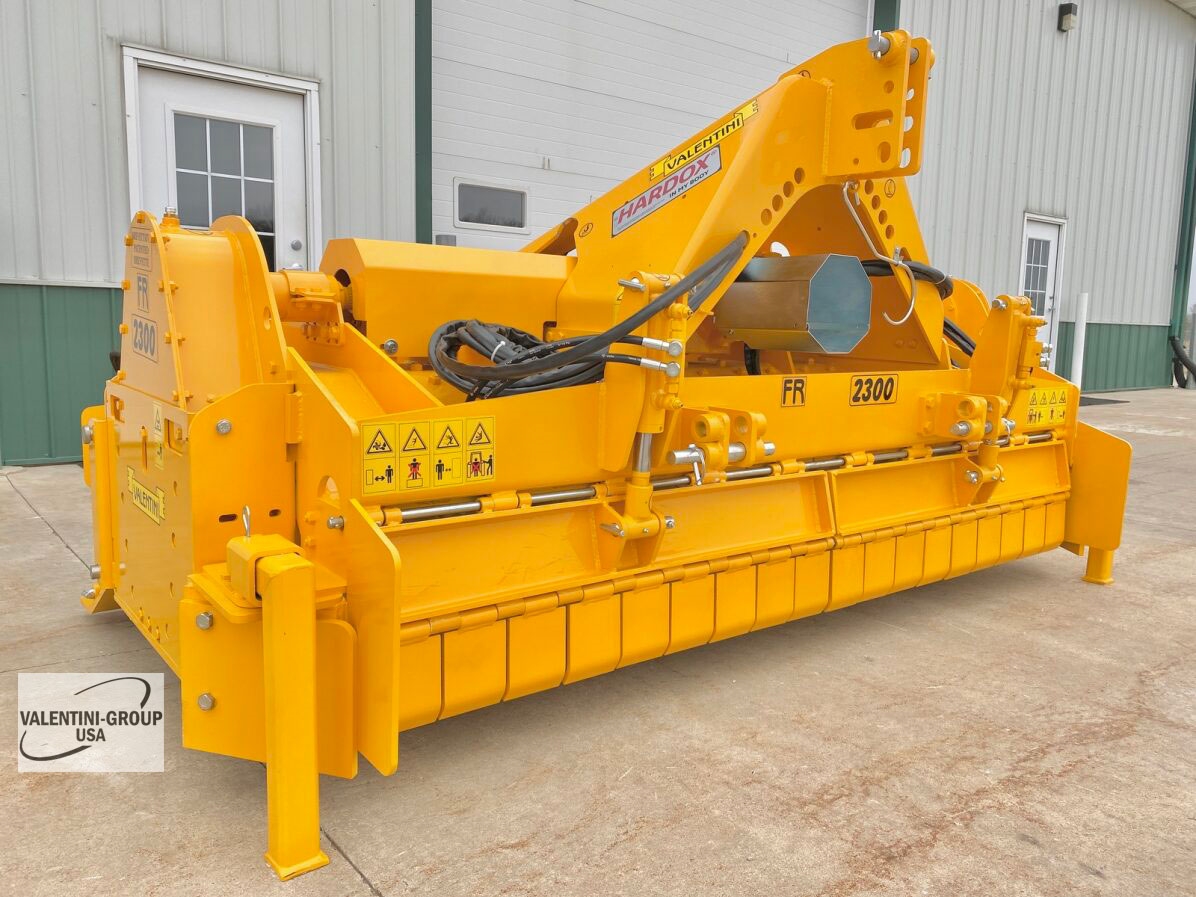

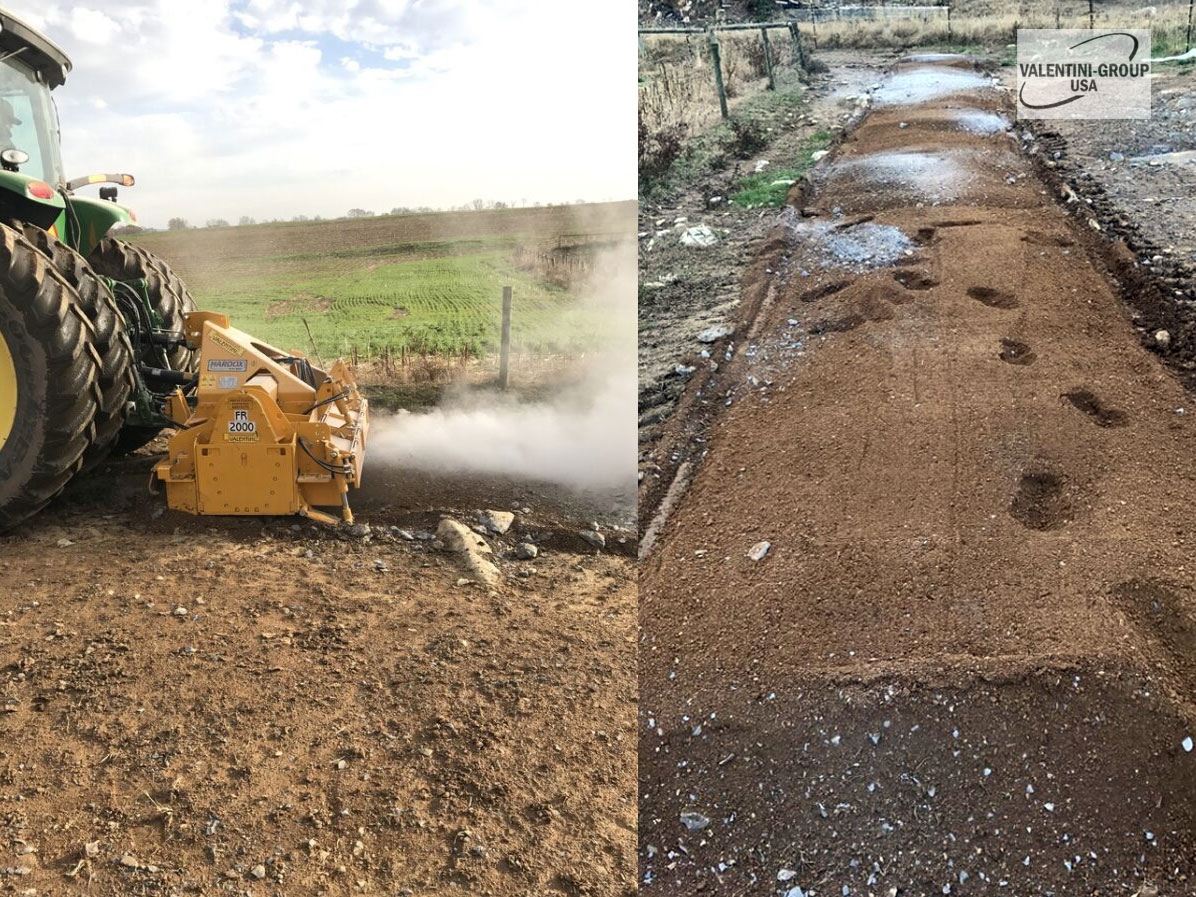

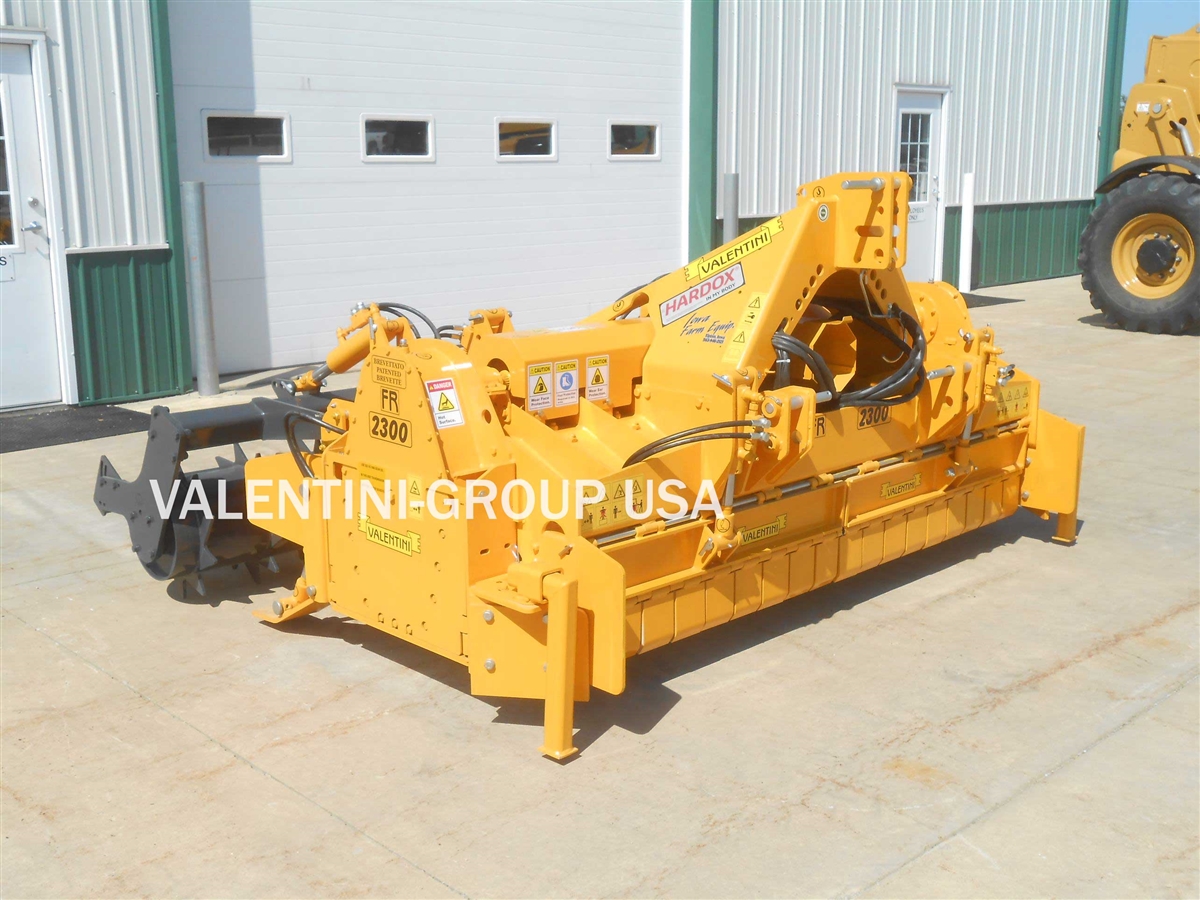

    • Sample Photos Include The RA2000DT & RA2300DT For Reference Only; This Listing is For a RA1800DT.
