Home > STONE CRUSHERS > 'L' Series
3'-6" to 7'-8" Working Widths
(80-170HP) >

L1300 Rock & Stone Crusher:
52" Working Width, 7" Depth
Suitable for 80-110HP

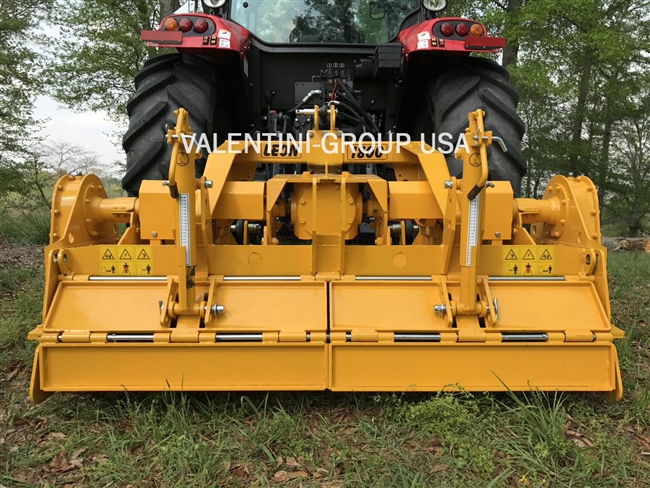

Valentini L1300 Tractor Rock & Stone Crusher

Alternative Views:


Availability:: Availability Varies From Season To Season
Product Code: LEON1300


GENERAL FEATURES: SPECIFICATIONS:


  • Crusher's 'Diminishing Chamber' is Comprised of the Following:
    • Front Shear Bar Provides First Mechanical Contact for Reducing Fragments.
    • Rear Hardox Grid Provides Secondary Contact for Further Fragmentary Reduction.
    • Hydraulically Controlled Rear Containment Door Controls Duration Fragments Remain in Chamber.
      • Containment Door Constructed for Extreme Service Duty & Wear Resistance.
    • Crusher Body Internal Hardox Lining is Replaceable.
  • Extreme Service Duty Rotor is Shock & Wear Resistant.
  • 19" Rotor Working Diameter, Tip to Tip.
  • 1" Diameter Tooth Shanks & Holders.
    • Tooth 'Holders' are Welded to the Rotor.
    • Teeth are Fixed in Holders with Snap Rings for Easy Service!
  • Central & Side Gear Drives in Oil Bath Gearboxes.
    • Single Transmission Units Have Oil Bath Bearing Enclosures for Non-Drive Side.
  • Unique & Patented Labyrinth Seals Ensure Bearings are Protected from Dirt!
  • Wear Plates/Skid Shoes on Both Sides of Crusher.
  • Safety Covers & Guards.
  • Crusher Includes Cam Clutch Protected Main PTO Shaft.
    • It Doesn't Get Any Better Than A Cam Clutch: The Most Efficient & Reliable Driveline Protection Available.
      • No Maintenance, Automatic Clearing & Resetting After Locked Rotor Conditions!
  • Sample Images Show Tractor For Reference Only - Tractor is Not Included.
    • Sample Video is of an L1500 For Reference Only.

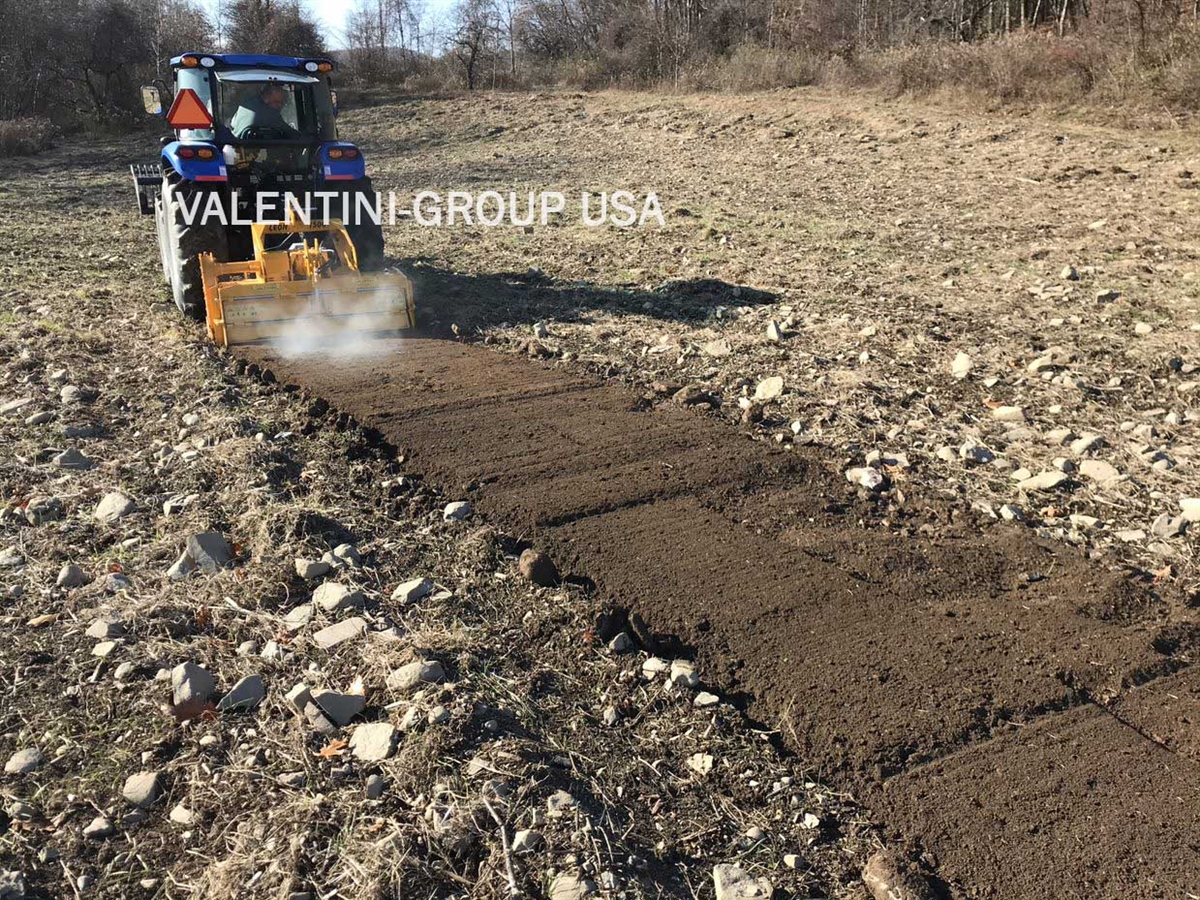

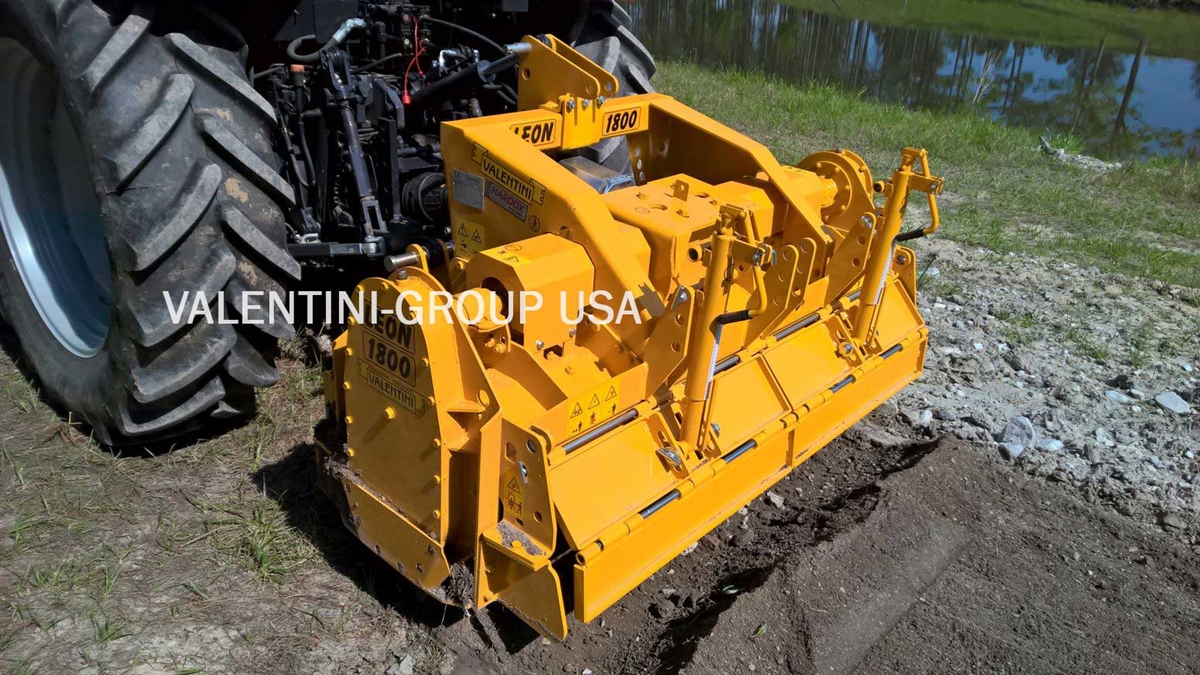

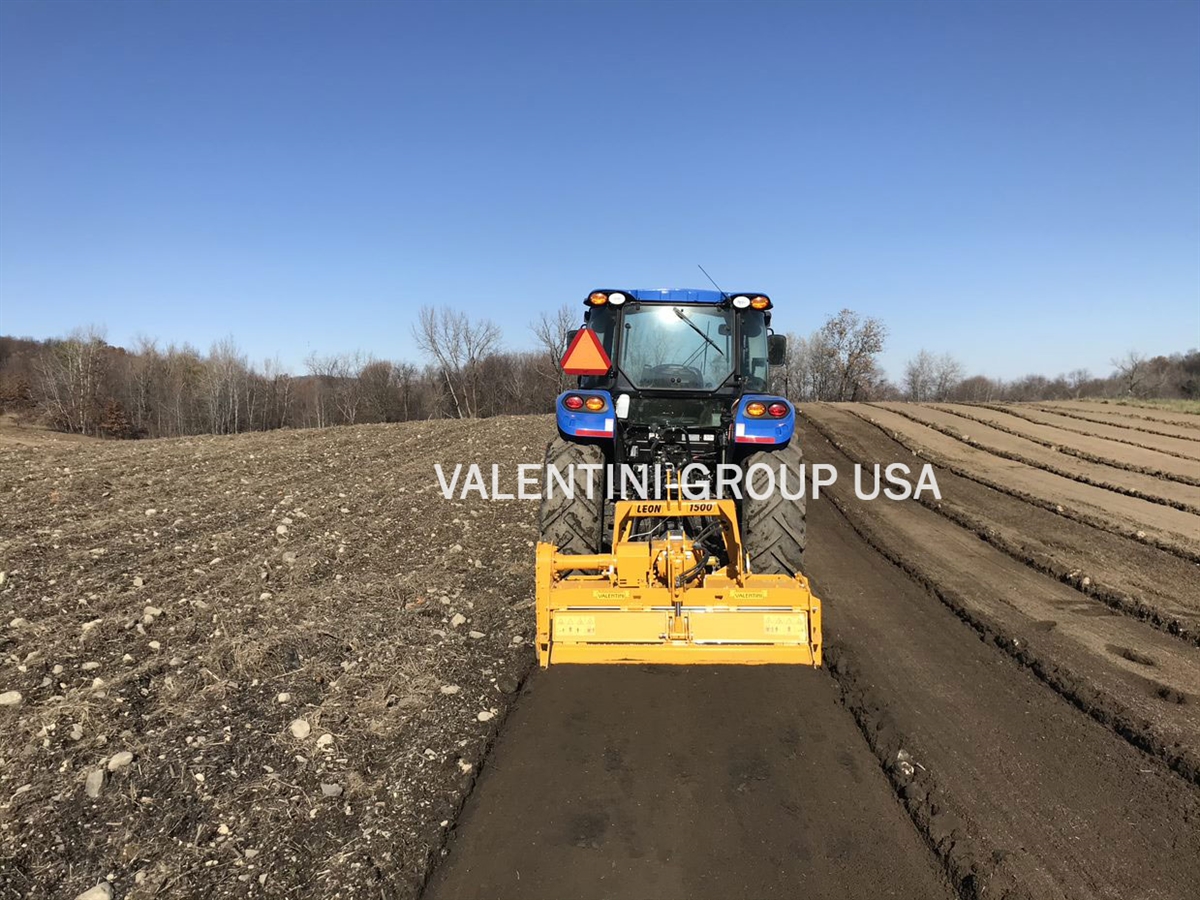

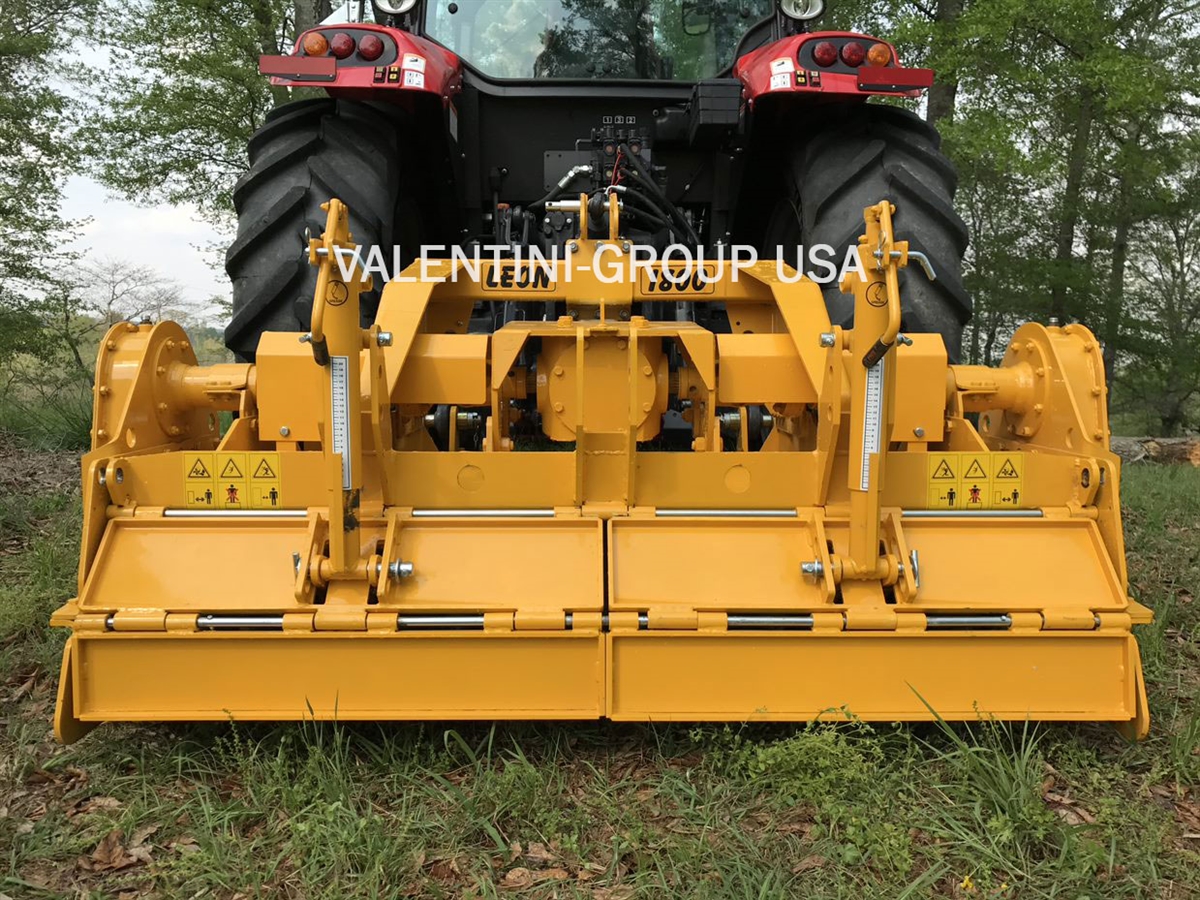

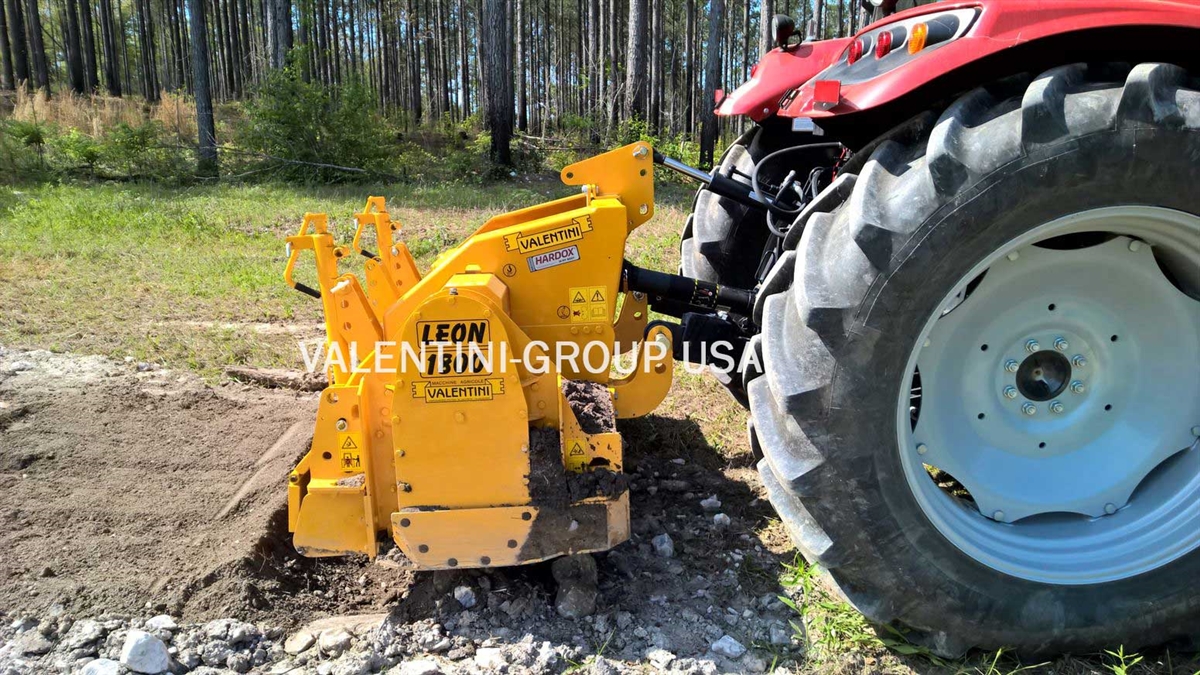

    • Sample Photos Include The L1500 & L1800DT For Reference Only; This Listing is For a L1300.
